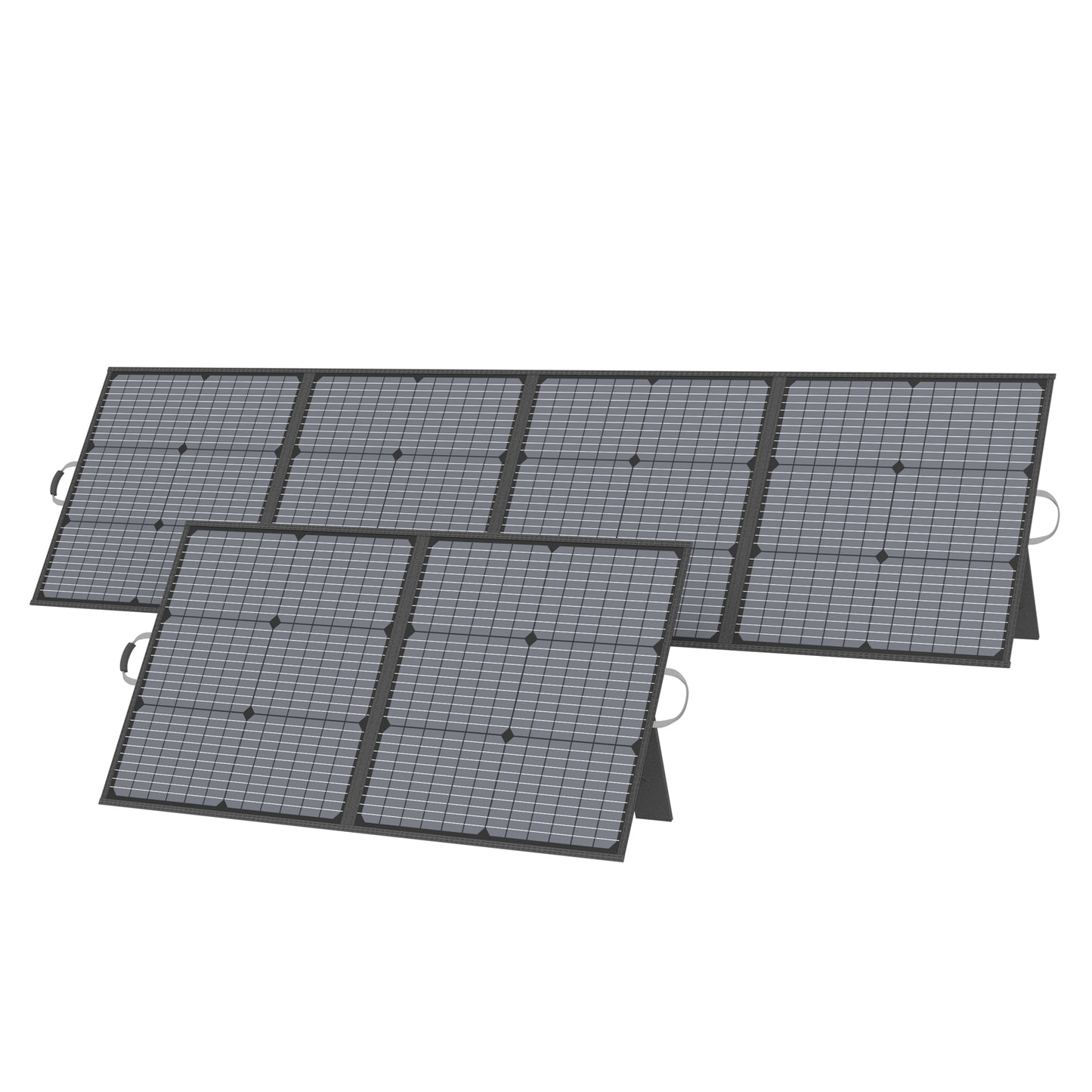

MHPOWOS Foldable Solar Panel

110W Foldable Solar Panel
Peak Power : 110W±5%
Open Circuit Voltage (Voc) : 24.0V
Short Circuit Current (Ise) : 6.0A
Maximum Power Voltage (Vmp) : 20V
Maximum Power Current(Imp) : 5.5A Max
Solar energy conversion rate: 23.5%
Operating Temperature:-20~60°C/-4~140°F
All technical data at standard test condition (STC: E=1000W/m2 TC=25CAM=1.5)
Unfolded Size: 1080x596.x22mm±0.5cm/42.5x23.4x0.86inch±0.2inch
Folded Size: 59.6cx54x4cm±0.5cm/ 23.46 x 21.25 x 1.57 inch±0.2inch
Net Weight : 3.07KG±0.3KG/108.3oz±10oz

220W Foldable Solar Panel
Peak Power:220W±5%
Open Circuit Voltage (Voc): 48V
Short Circuit Current (lsc): 6.0A
Maximum Power Voltage (Vmp): 40V
Maximum Power Current (lmp): 5.5A Max
Solar Energy Conversion Rate: 23.5%.
Operating Temperature:-20~60°C/-4~140°F
All technical data at standard test condition: E=1000W/m²TC=25C AM=1.5
Folding Size: 596 x 540 x 58mm(23.5 x 21.25 x2.3 inch)
Deployment size: 2163 x596x 28 mm(81.2 x 23.5 x1.1inch)
Weight: 5.85kg±0.3kg / 206.3 oz±10oz

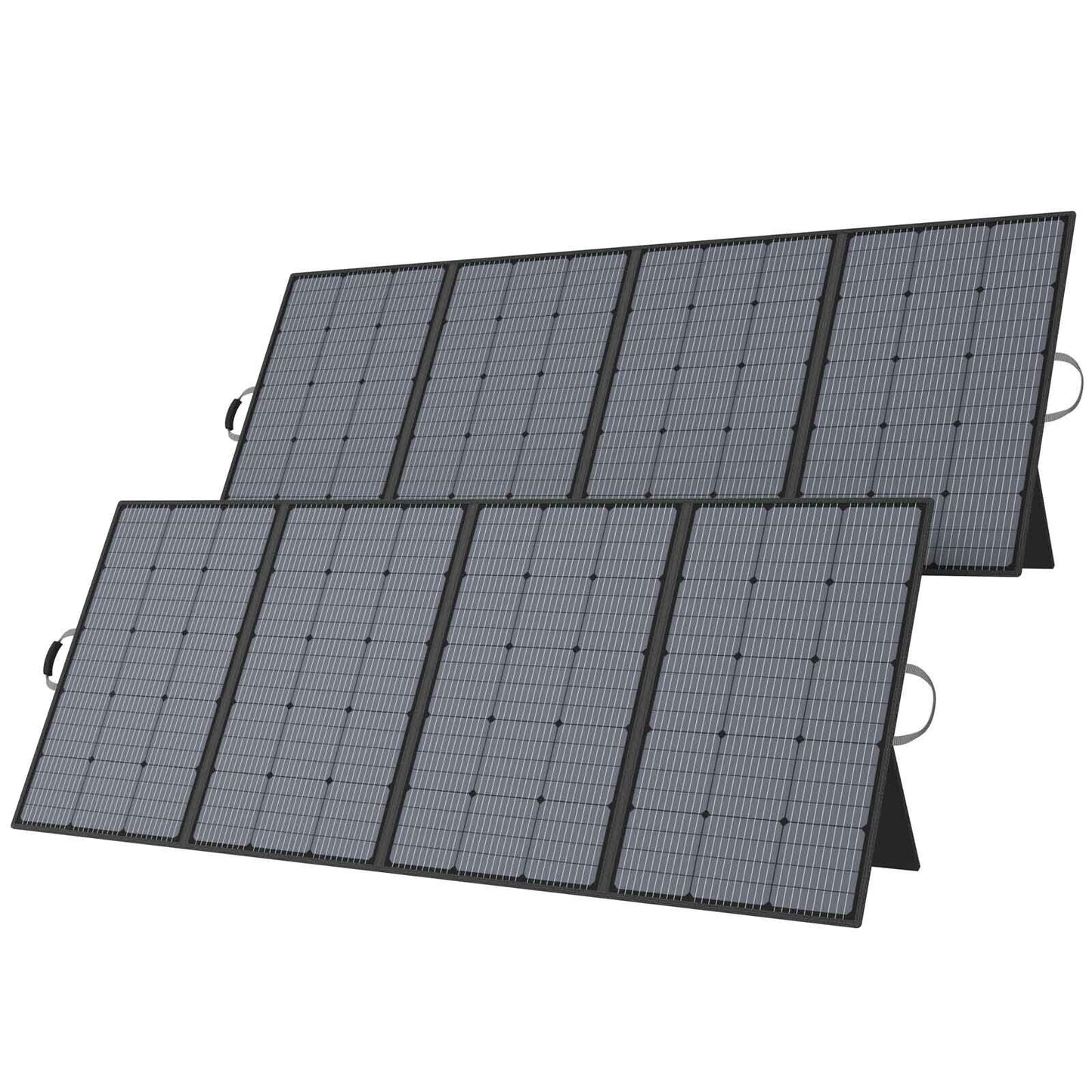

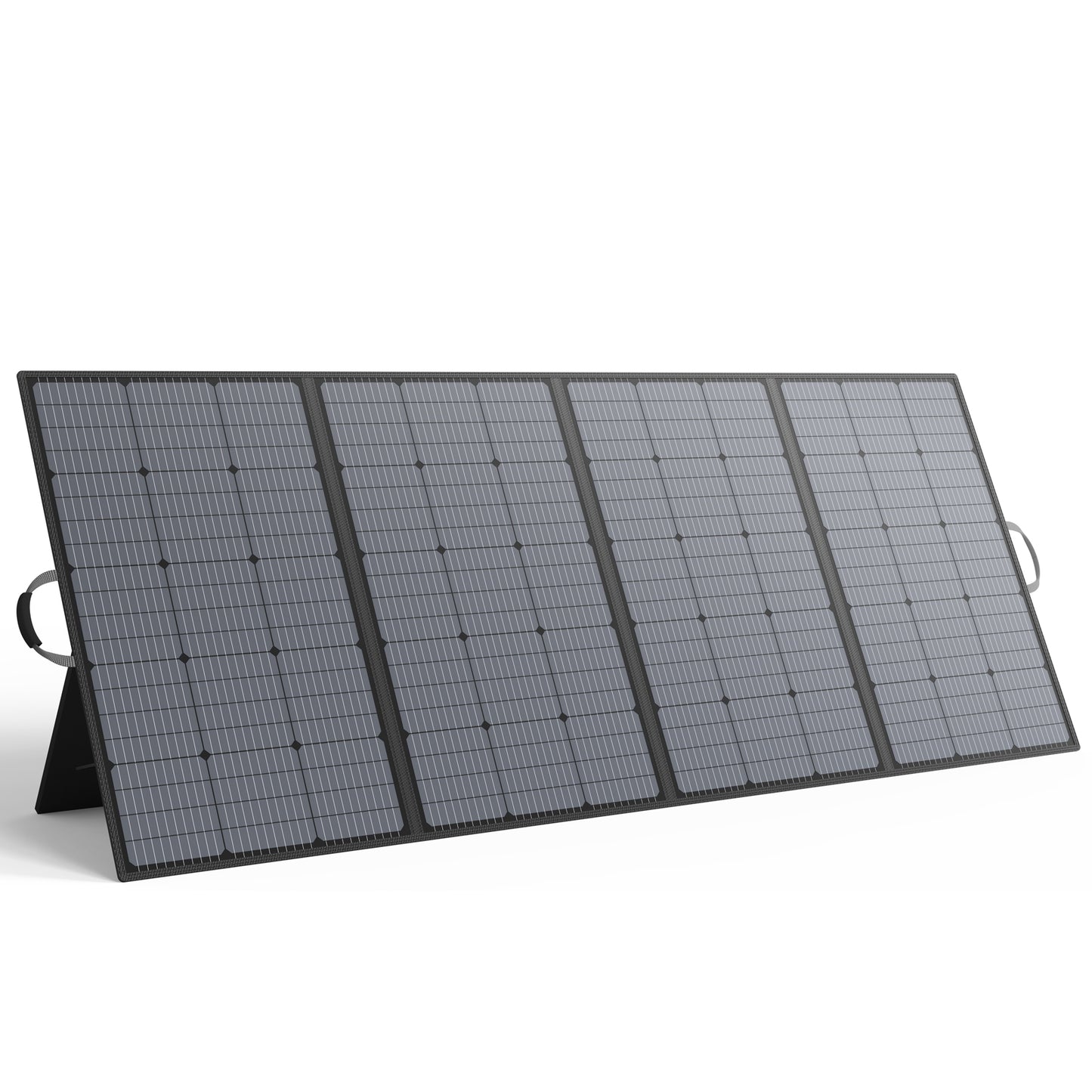

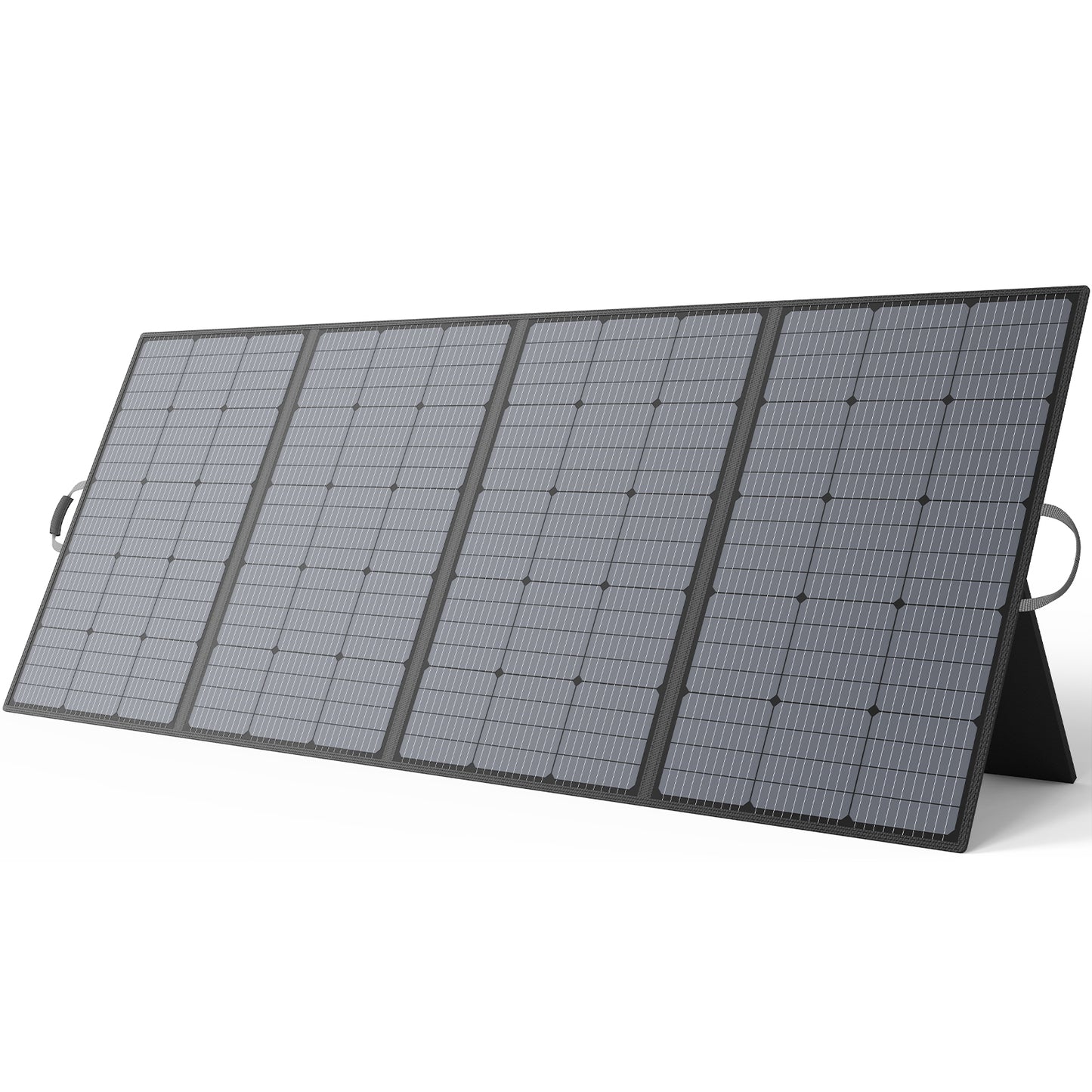

400W Foldable Solar Panel
Peak Power:400W±5%
Open Circuit Voltage (Voc): 38V
Short Circuit Current (lsc): 13A
Maximum Power Voltage (Vmp): 31V
Maximum Power Current (lmp): 12A Max
Solar Energy Conversion Rate: 23.5%
Operating Temperature:-20~60°C/-4~140°F
All technical data at standard test condition: E=1000W/m²TC=25C AM=1.5
Unfolded Size:940 x 585 x 70mm(37 x 23 x2.75 inch) /
Folded Size: 2335 x935x 28 mm(81.2 x 23.5 x1.1inch)
Weight: 12.45kg±0.3kg / 439.16 oz±10oz

110W Solarpanel *1
Solar Extension Cables to XT60 (MC-4 to XT60) *1
instruction manual *1

220W Solarpanel *1
Solar Extension Cables to XT60 (MC-4 to XT60) *1
Instruction Manual *1

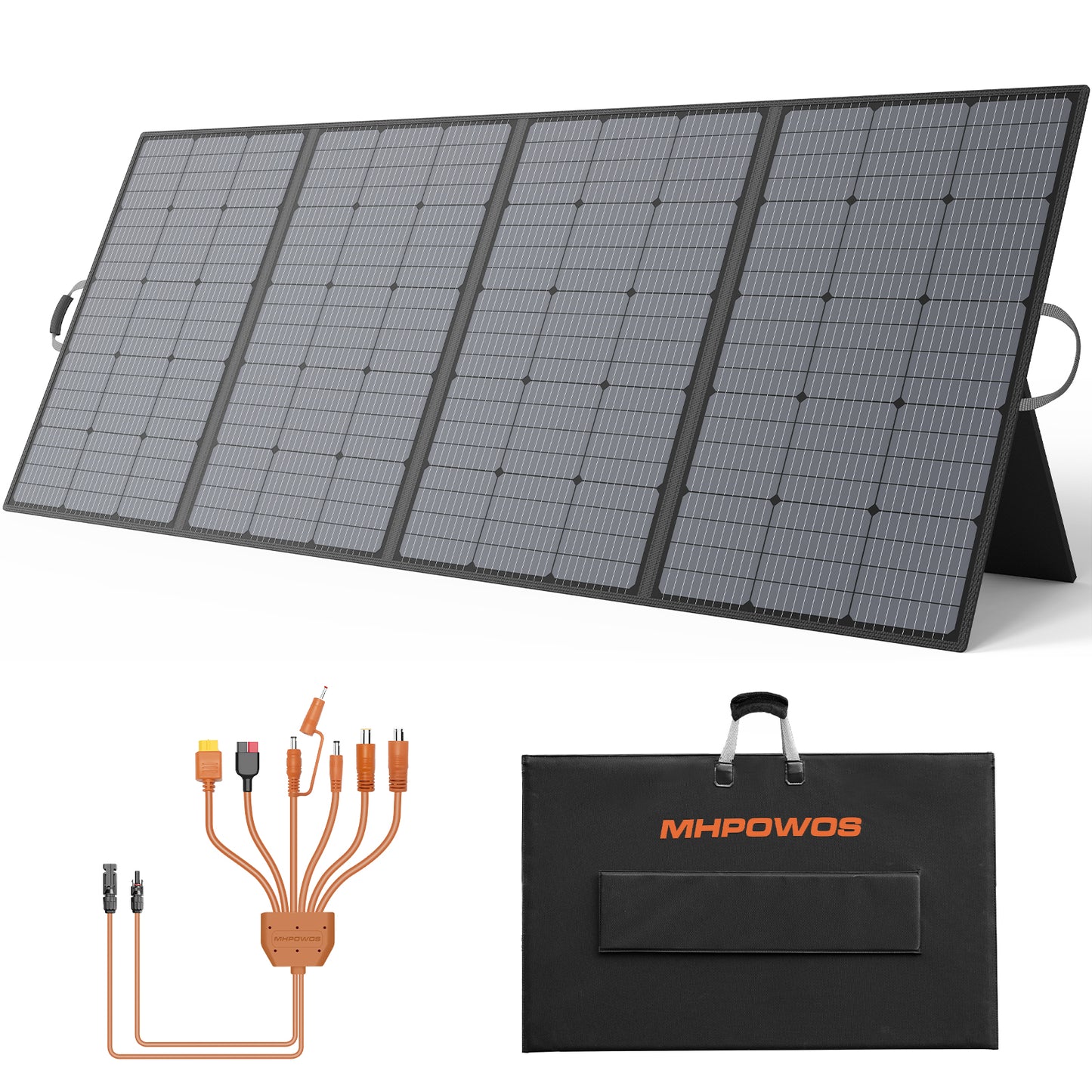

400W Solarpanel *1
Solar Extension Cables to XT60 (MC-4 to XT60) *1
Instruction Manual *1

1.Place your solar panel to an area where you can get the most possible sunlight and adjust the angel to sun.
• All solar panels must be exposed to direct sunlight, avoid any possible shelters like buildings and trees .

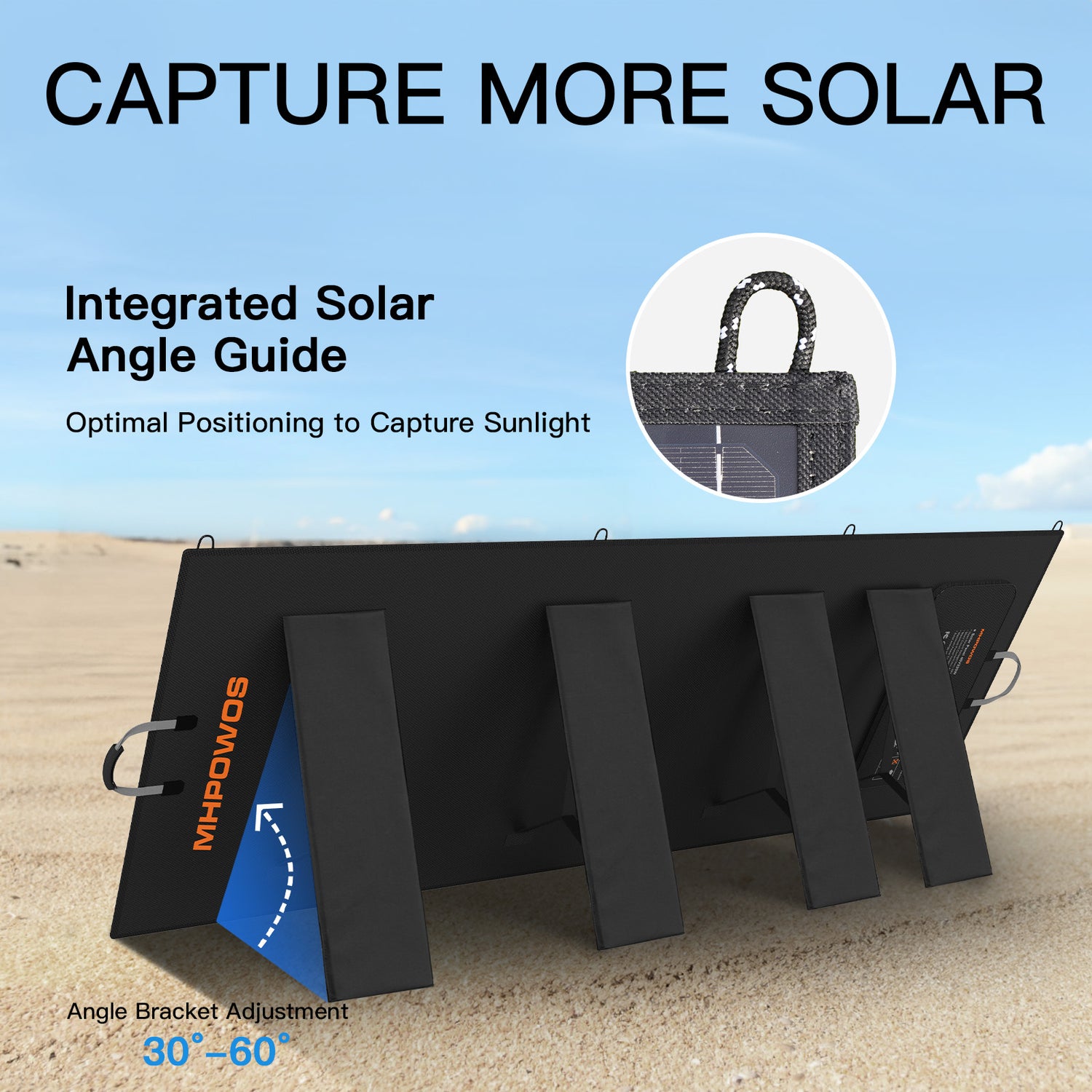

• Solar panels angled at 30-60 degree ,making solar panel perpendicular to solar directly to get the best charging effect.
• If your panels must be adhere to other surface, you need to avoid the damp or irregular surface as they might bring a bit distortion after long time sunlight exposure.(we can rescue it after a second long time exposure.)
• Please choose the sunny hours in a day(9:00 am to 5:00 pm)and panels operate at peak efficiency when the sun is most direct-typically around mid- day(am 12:00-1:00 pm)
• In the natural environment, it is normal to finally get 260-320w due to the angle and intensity of sunlight.

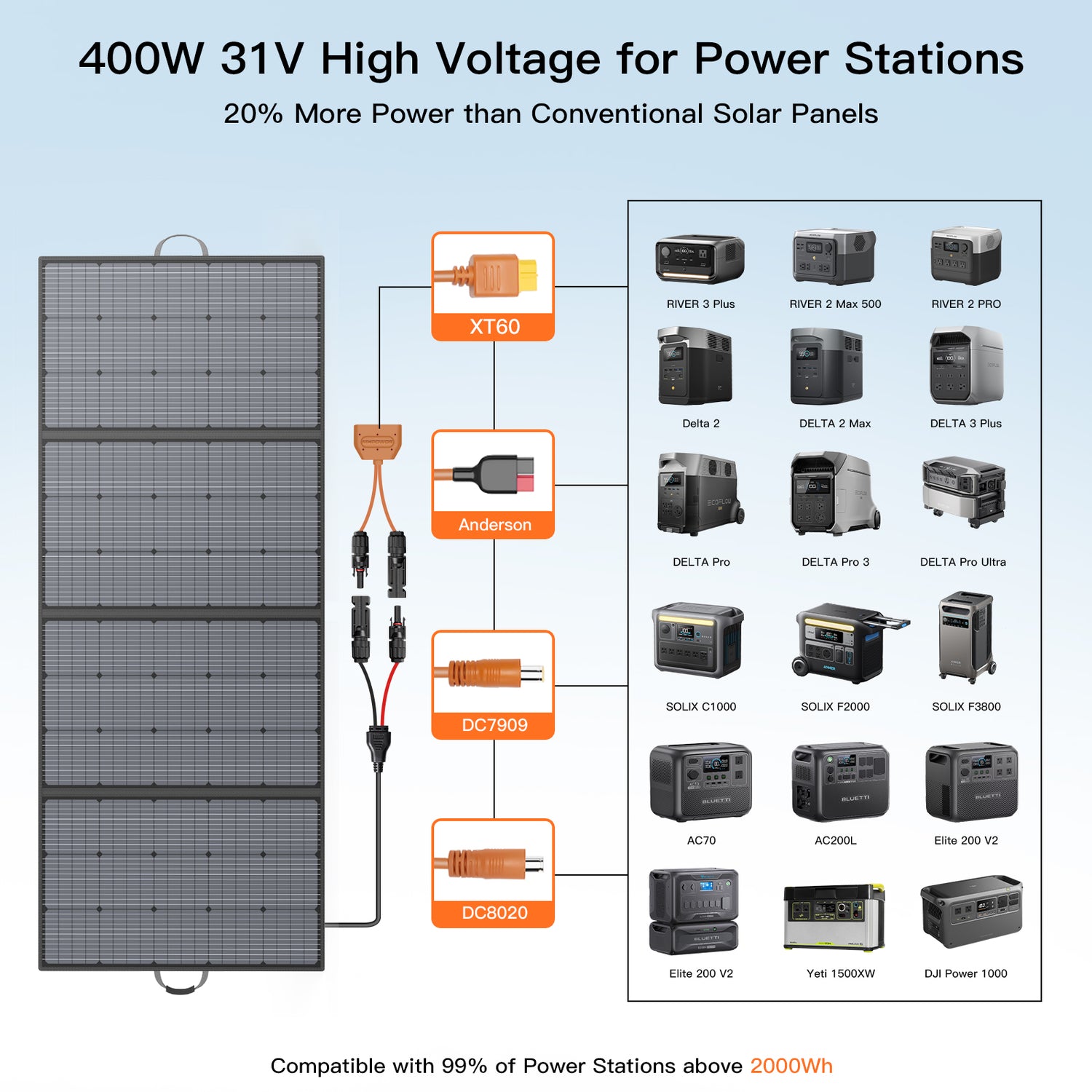

2.Build connection between the solar panel and the solar generator
Before the charging, please turn off your devices to decrease the screen’s consumption thus it can shorten the charging time.
•Solar panels generate electricity when panels meet sunlight, so please protect them with clothes before you plug in a device.
•Plug the cable in the input of your device, another end of cable go towards the out put of the solar panel firstly, then unfold solar panel to charge.
•Remove the clothes and you will find a charging sign on your laptop, if not, please build the connection again or replace another charging cable.
•If there shows up a charging sign, you can settle your device to a cool place for better heat dissipation and turn off your device to save the loss of energy during its running hours especially for laptops.
3.How to chain multiple solar modules together
It is also designed for charging 12V/24V lead-acid batteries, including lithium and other equipment, pls do pair the charging with a solar regulator to protect the batteries system from overcharging.
•You can add more panels together with MC4 Y connectors to get different output: voltages are additive when Panels are connected directly in series, and the currents are additive when panels are connected directly in parallel.
•Only panels with similar electrical output should be connected in the same string to avoid mismatch effects.
•Solar panels are connected in series (+ to -, - to +): the voltage is added, the power is added, and the current is unchanged.
•Parallel connection of solar panels (+ to +, - to -): the voltage does not change, the power is added, and the current increases.
•Excessive solar input voltage would damage portable power station. Please check the solar input parameter voltage of portable power station first, and connect solar panels within the voltage range.

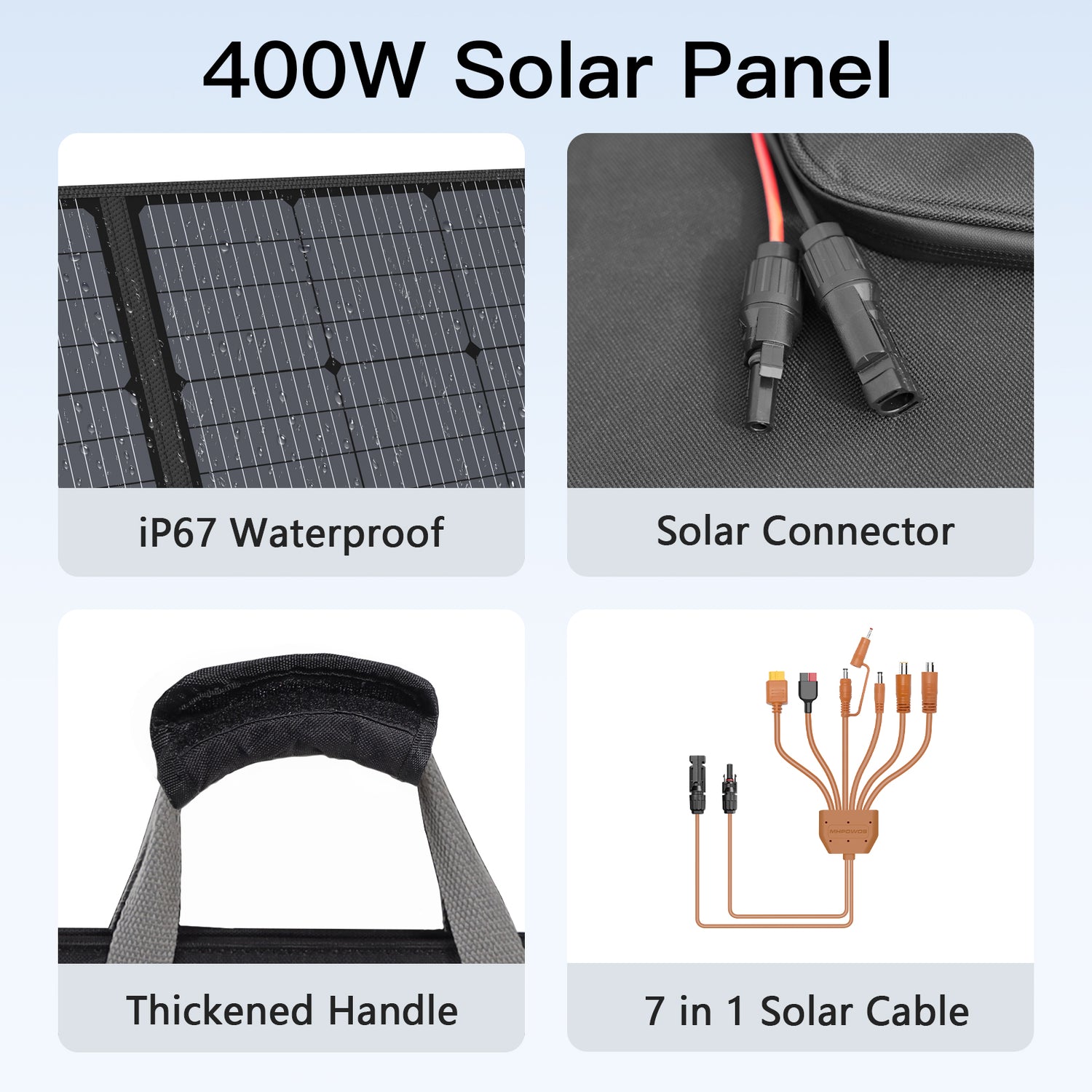

MC4 connectors
1. Keep connectors dry and clean, and ensure that connector caps are hand tight before connecting the panel.
2. Do not attempt making an electrical connection with wet, soiled, or otherwise faulty connectors.
3. To better preserve its service life, please avoid sunlight exposure and water immersion of the connectors, and avoid connectors resting on the ground or roof surface.
4. Faulty connections can result in electrical shock. Please check that all electrical connections at least once every 6 months. Make sure that all locking connectors are fully fastened and locked.

1.This suitcase is mainly for emergency charging purpose, we do not suggest a long time outdoor exposure as it may shorten the lifespan of this product.
2.Not bendable, please handle the solar panel with care, and avoid hitting it with sharp objects or knocking heavily on it.
3.lf your panels must be adhere to other surface, you need to avoid the damp or irregular surface as they might bring a bit distortion after long time sunlight exposure.(we can rescue it after a second long time exposure.)
4.It is normal that solar panels got hotter during working hours and please store them with the box after they become cool down.
5.Dirt and dust can accumulate on the surface over time, this can cause a
general decrease of power output, we recommends periodic cleaning for panel with a mild, non-abrasive cleaning agent.
6.It is not suggested to leave it charge any devices unguarded in vehicles especially in hot summer days as the temperature in front of the dashboard might goes up to 65-70℃.
7. The waterproof rating is IP67, which can completely prevent dust from entering, and it will not enter the interior if it is directly sprayed by water in any direction, but it is forbidden to immerse the whole product in water for a long time.
