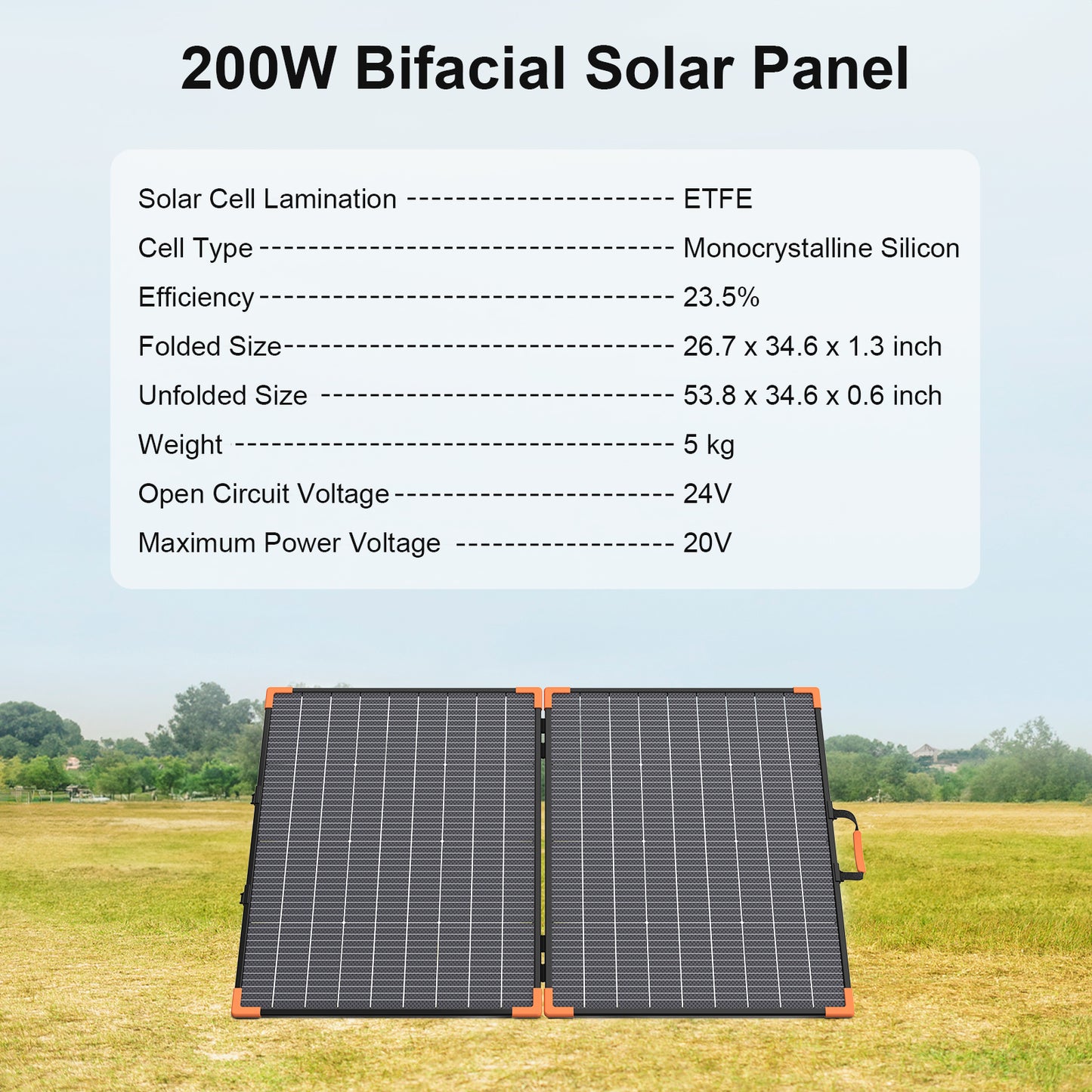

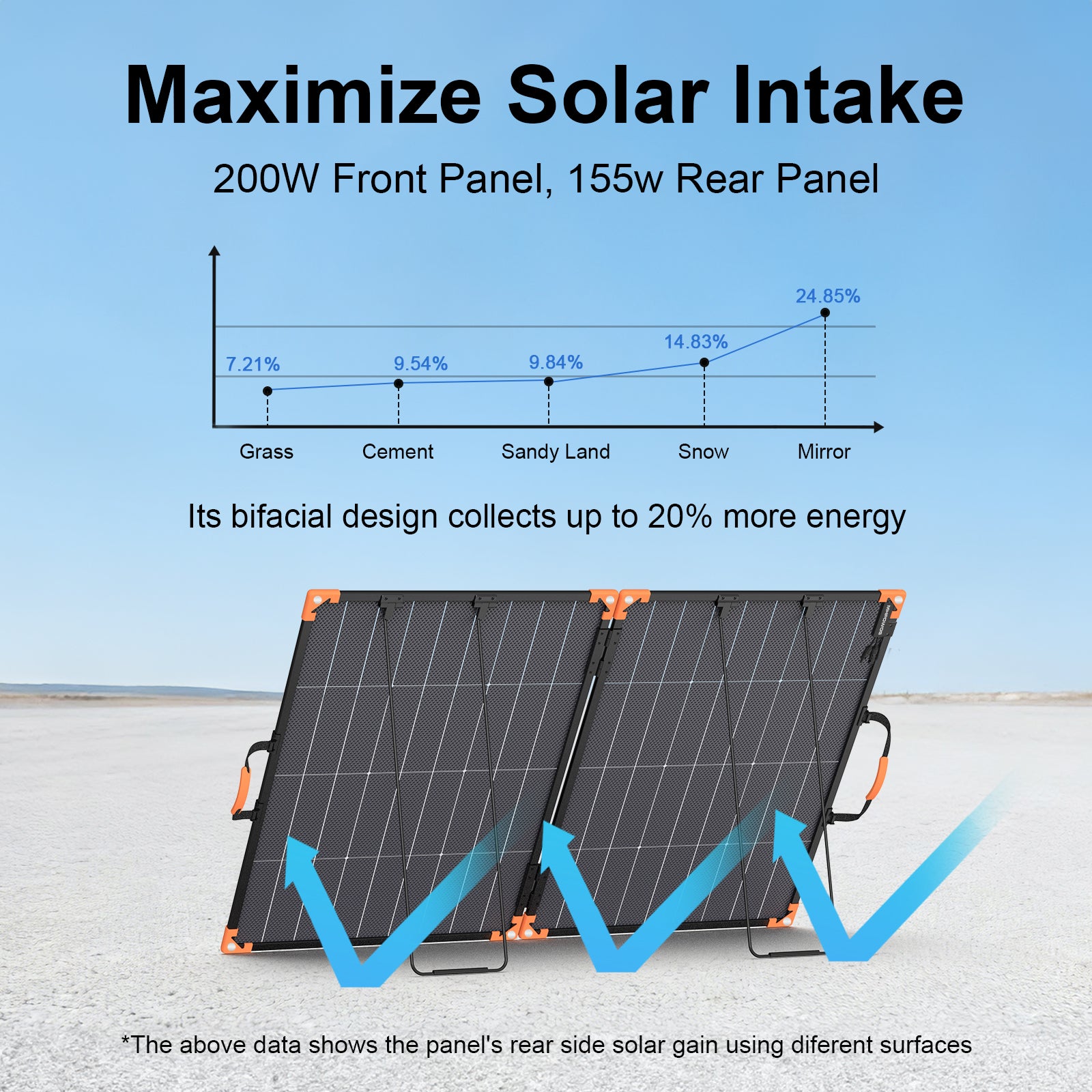

MHPOWOS 200W Bifacial Foldable Solar Panel

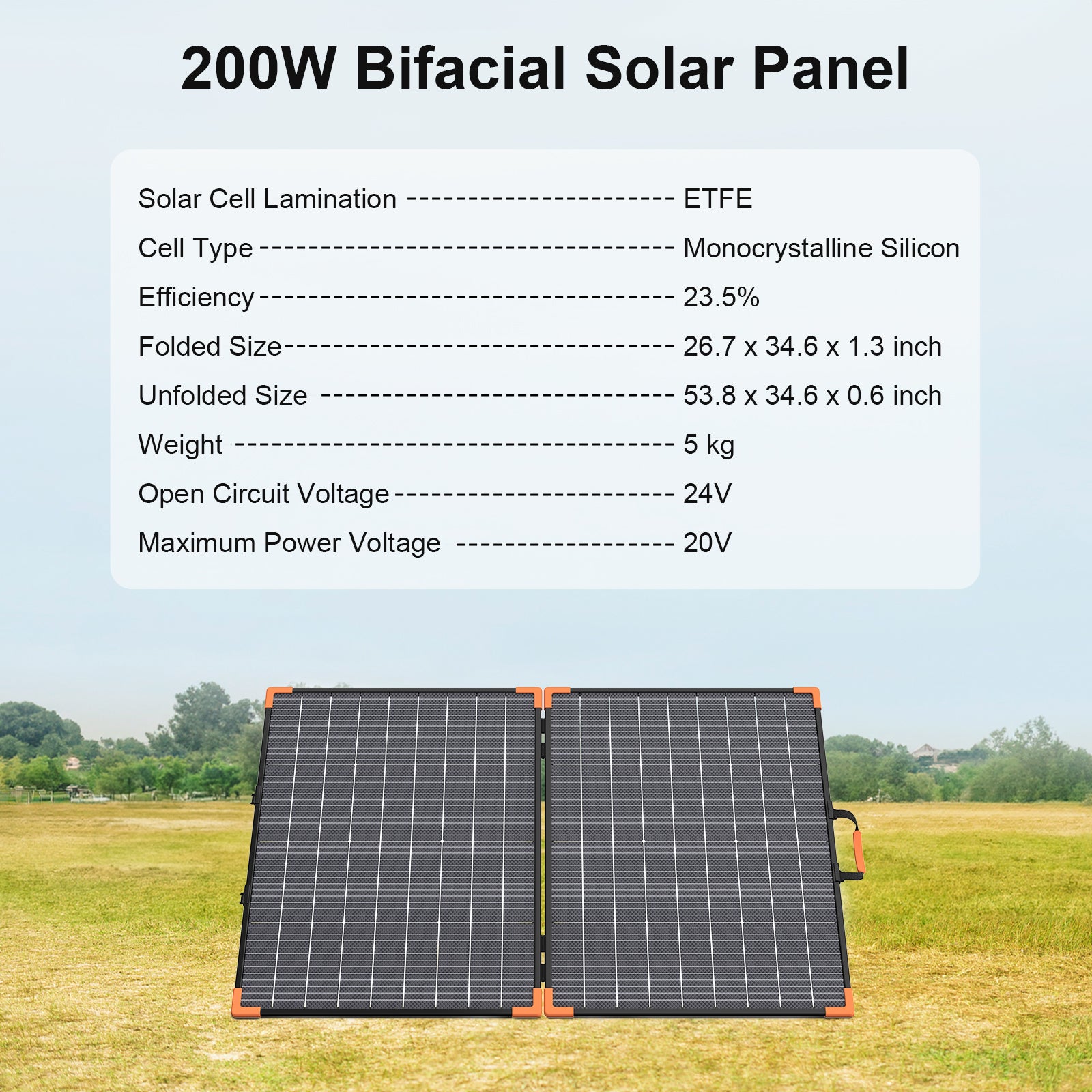

Max Power : 200W
Open Circuit Voltage (Voc) : 24V
Maximum Power Voltage (Vmp) : 20V
Maximum Power Current(Imp) : 10A
Solar energy conversion rate : 23.5%
Operating Temperature : -20°C~60°C（-4°F ~ 140°F）

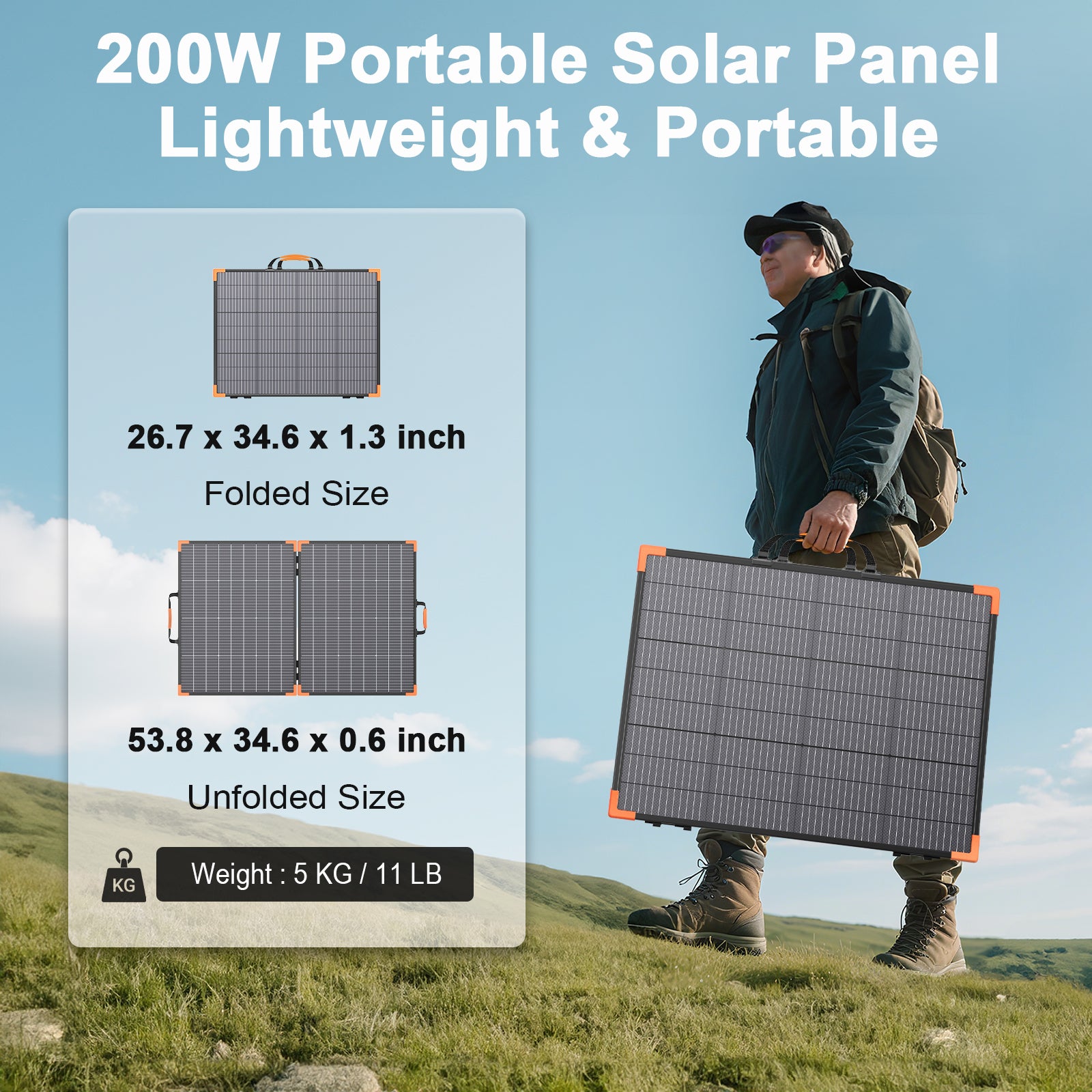

Unfolded Size : 53.8 x 34.6 x 0.6 inch
Folded Size : 26.7 x 34.6 x 1.3 inch
Net Weight : 5Kg / 11 Lb
Charging Cable Length : 39.37 inch

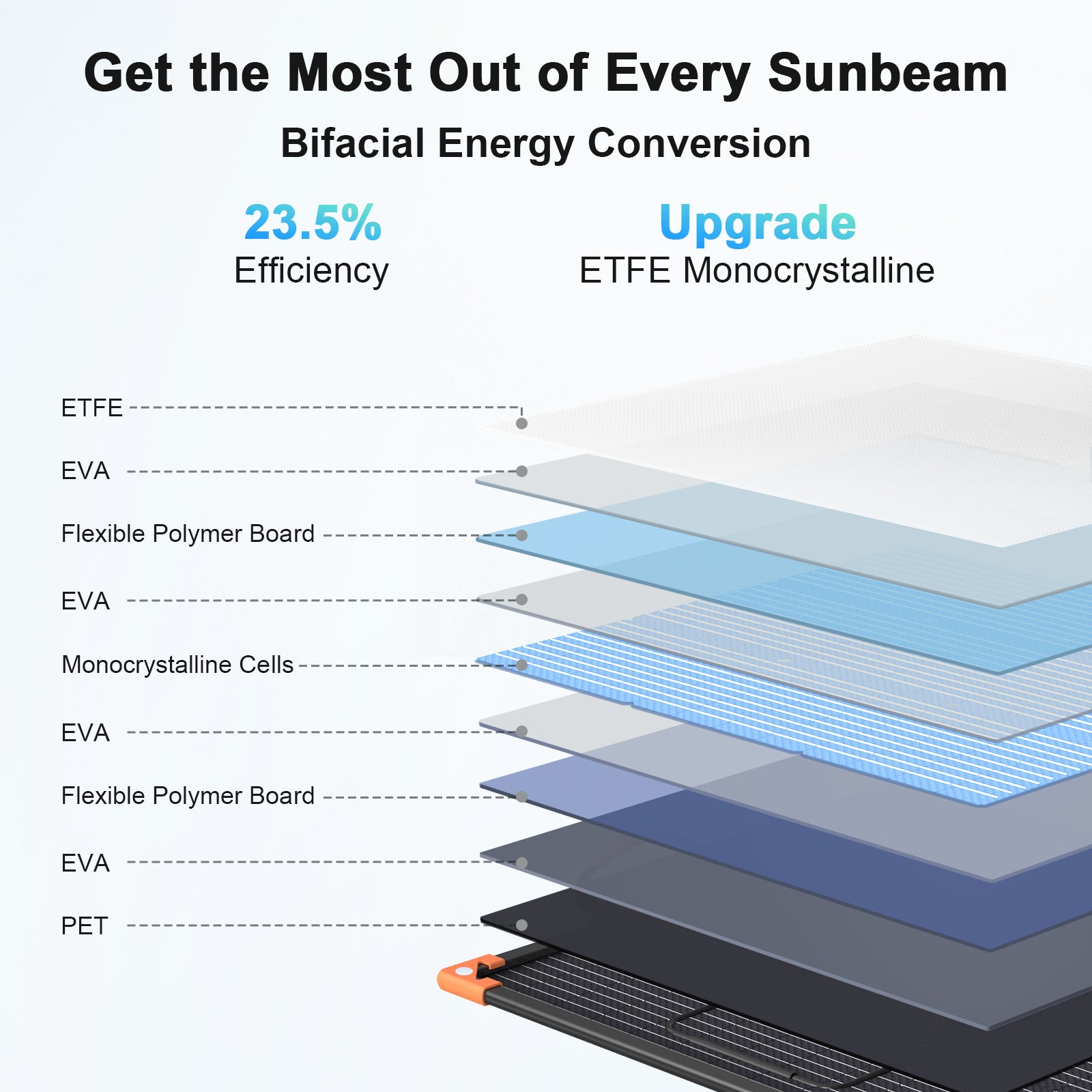

Cell Type : ETFE Monocrystalline Silicon
Warranty : 18 Months

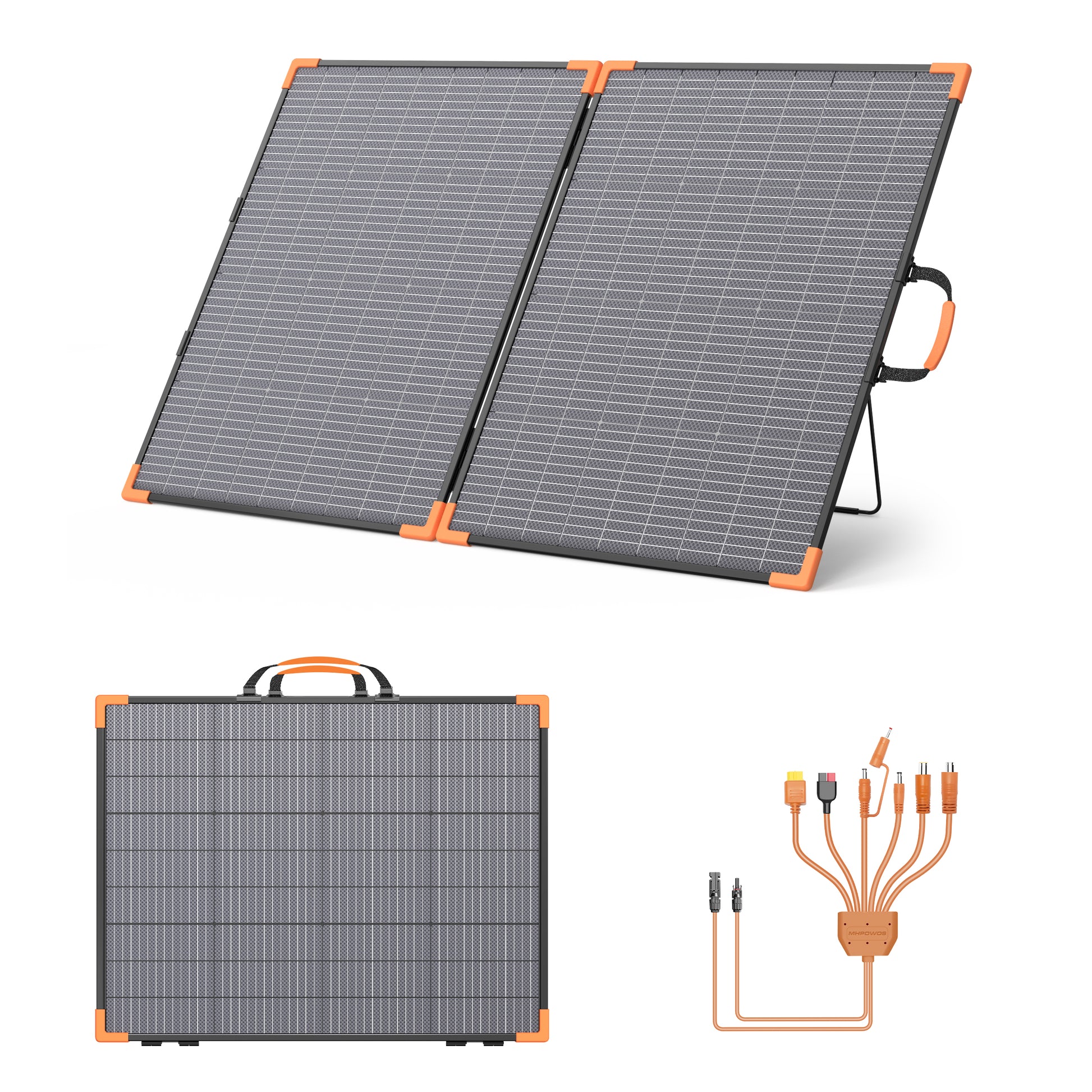

200W solar panel *1

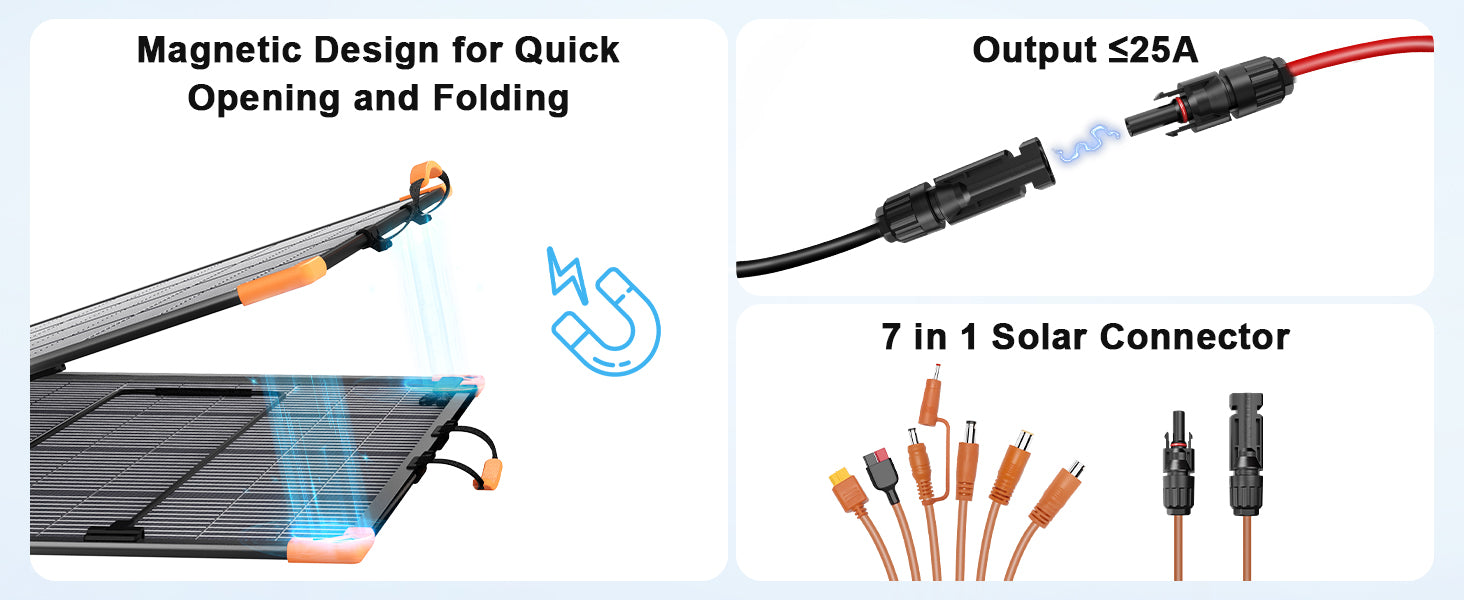

7-in-1 solar connector *1
instruction manual *1

1.Place your solar panel to an area where you can get the most possible sunlightand adjust the angel to sun.
•The solar panel must be exposed to direct sunlight, avoid any possible shelters like buildings and trees.

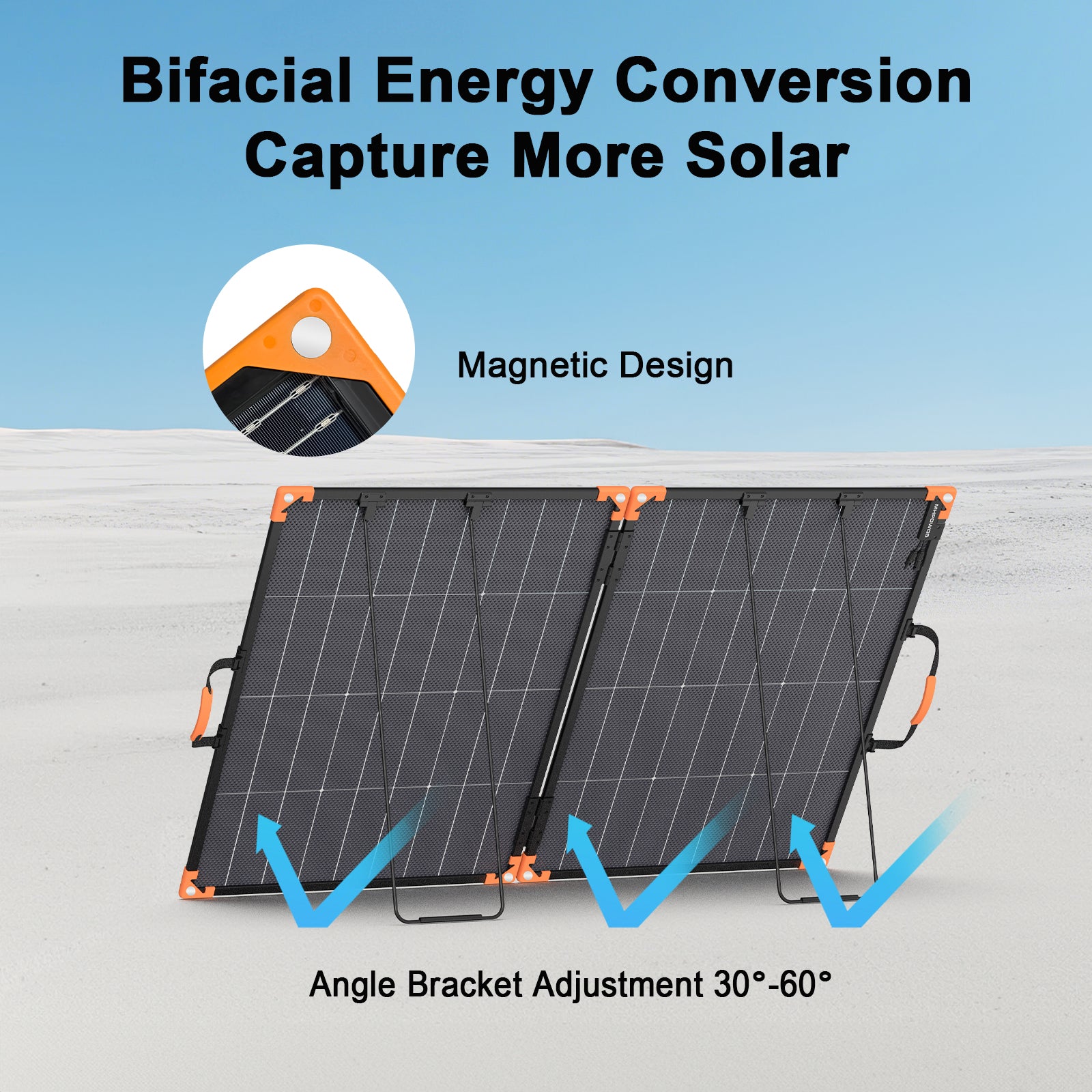

• The solar panel angled at 30-60 degrees from a flat surface will harvest the solar energy that is most possible.
• If your solar panel must be adhere to other surface, you need to avoid the damp or irregular surface as they might bring a bit distortion after long time sunlight exposure.(we can rescue it after a second long time exposure)
• Please choose the sunny hours in a day(9:00 am to 5:00 pm)and panels operate at peak efficiency when the sun is most direct-typically around mid- day(am 12:00-1:00 pm)

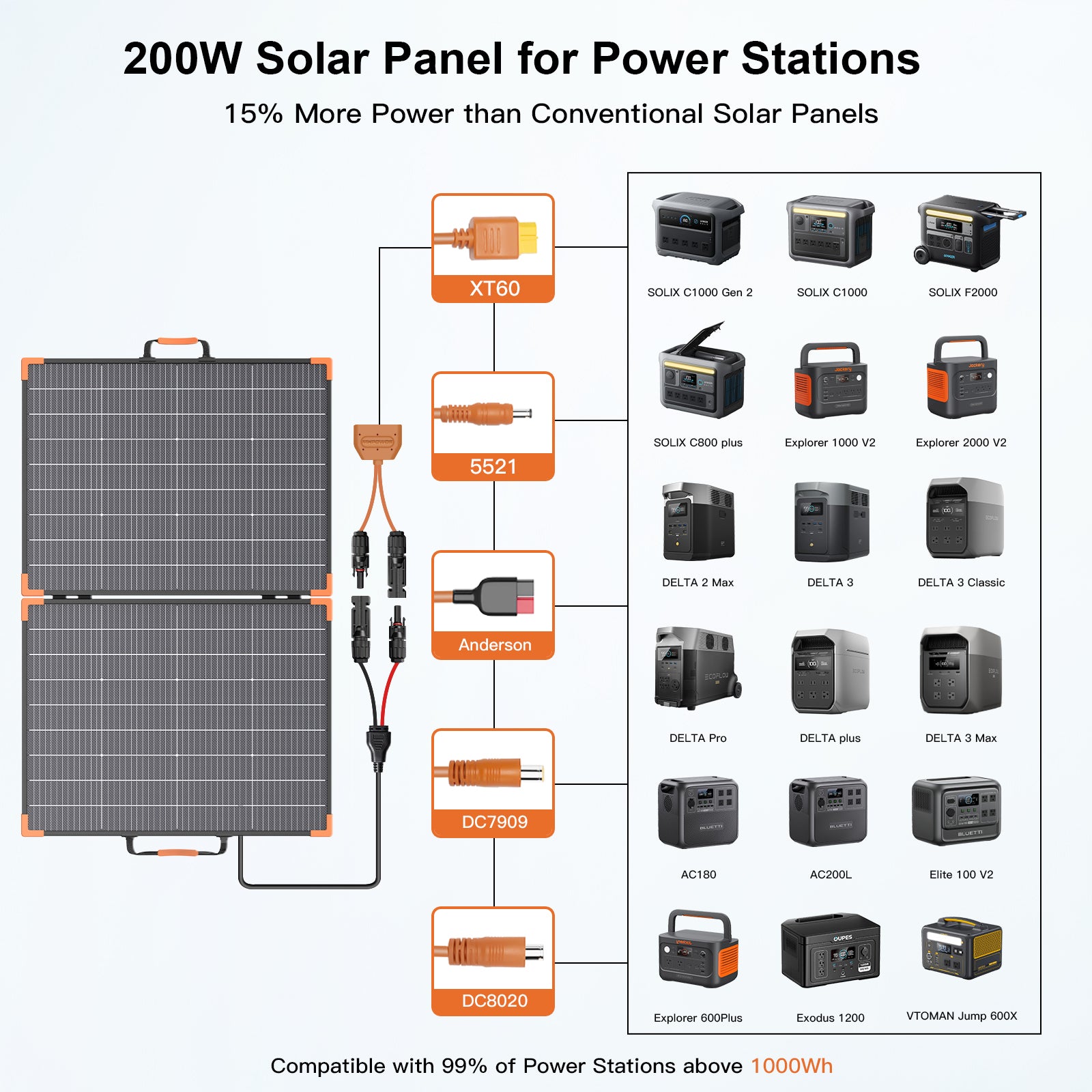

2.Build connection between the solar panel and your Laptops/Solargenerators.
• Solar panels generate electricity when panels meet sunlight, so please protect them with clothes before you plug in a device.
• Plug in the cable to the input of your device first, then the other end of cable go towards the output of solar case.
• Remove the clothes and you will find a charging sign on your laptop, if not, please build the connection again or replace another charging cable.
• If there shows up a charging sign, you can settle your device to a cool place for better heat dissipation and turn off your device to save the loss of energy during its running hours especially for laptops

3.How to chain multiple solar modules together
It is also designed for charging 12V/24V lead-acid batteries, including lithium and other equipment, pls do pair the charging with a solar regulator to protect the batteries system from overcharging.
• You can add more solar panels together with MC-4 Y connectors to get differen output: oltages are additive when are connected directly in series, and the currents are additive when panels are connected directly in parallel.
• Only solar panels with similar electrical output should be connected in the same string to avoid mismatch effects

MC-4 Connectors
1.Keep connectors dry and clean, and ensure that connector caps are hand tight before connecting the panel.
2. Do not attempt making an electrical connection with wet, soiled, or otherwise faulty connectors.
3. To better preserve its service life, please avoid sunlight exposure and water immersion of the connectors, and avoid connectors resting on the ground or roof surface.
4. Faulty connections can result in electrical shock. Please check that all electrical connections at least once every 6 months. Make sure that all locking connectors are fully fastened and locked.

1. Please do not try to modify the PCB circuit inside the back junction box unless you are a professional technician, or we are not responsible for such a result.
2. The solar panel charger is built with a anti-flow resistant preventer inside, it will not occur the backflow phenomenon.
3. Do not step, stand or jump on the surface of the solar panel. Heavy or sharp objects may scratch the solar panel and cause small cracks, affecting the output power or scratching the human body.
4.lf the solar panel is broken, please stop using it and contact professional maintenance personnel or the manufacturer's after-sales service mailbox. A professional will fix it rather than fix it yourself.
5.The waterproof coefficient of the solar panel is IP67, which is rainproof and can be immersed in water for a short time, but it is forbidden to immerse in water for a long time. Once it is short-circuited due to water immersion, please stop using it and contacting the seller.
