MHPOWOS

MHPOWOS 110W Foldable Solar Panel

$109.99 USD

Sale Sold out

Option 110W Foldable Solar Panel

Quantity

6% OFF

Code: NEW6

• Foldable & Portable & Lightweight
• Highly Efficiency 20V 110W Solar Panel, Up to 23.5% conversion rate
• Durable with IP67 waterproof rating
• Adjustable Kickstands
• One-piece folding design
• Package list: 110W Solar Panel*1, 7 in 1 Solar Cable*1, User Manual*1
• Warranty Extension: 18 months warranty (applied automatically if purchased from our official website）

Free & Fast Delivery
Free RMA Return
18 Months Warranty

View full details

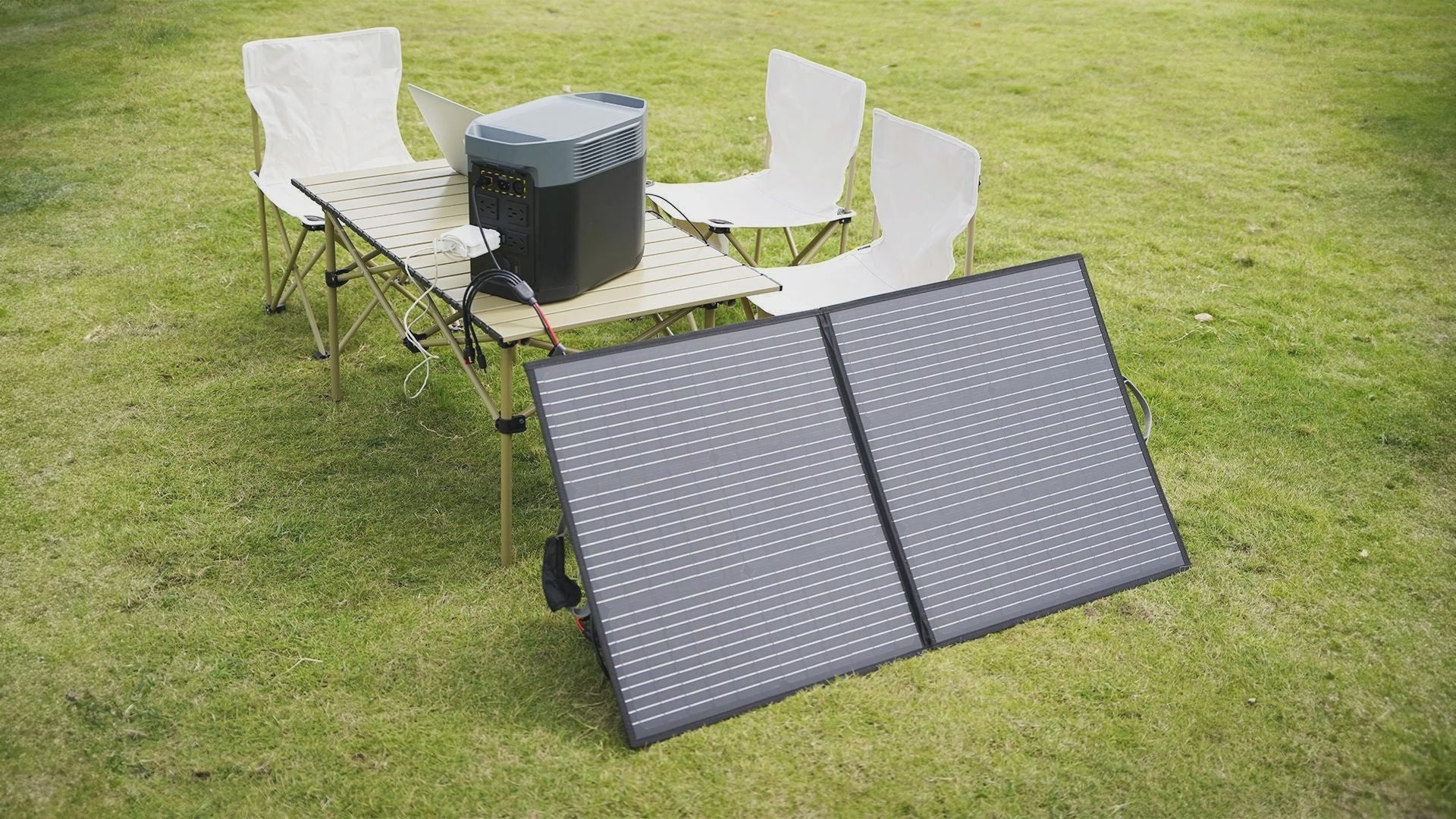

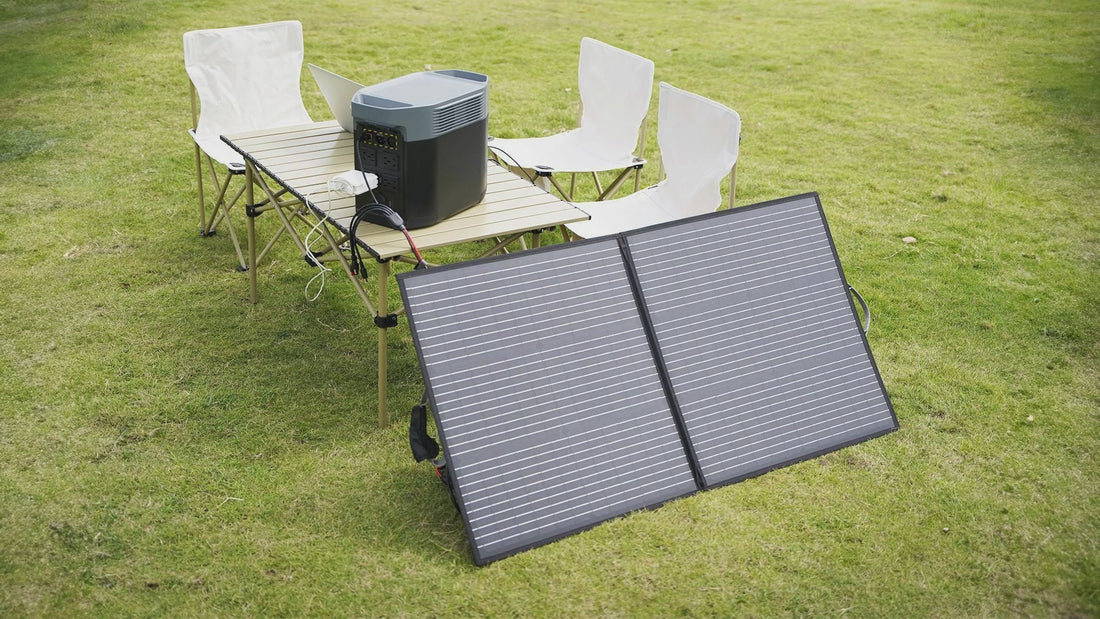

MHPOWOS 110W Foldable Solar Panel- converts solar to renewable power with this monocrystalline solar panel. With a high solar conversion efficiency of 23.5%, it's perfectly suited for outdoor activities and for emergency power outages. The ETFE-laminated case extends the lifespan of the solar panel, and weighs in total just 7.3 lbs. It's lightweight, foldable, IP67 waterproof-rated, and easy to carry around for taking on your off-grid adventures.

1 2

Catch and Convert Sunlight Efficiently

The solar panels are made with high-efficiency monocrystalline cells and feature a honeycomb light trapping design. Equipped with adjustable stands, these panels are designed to maximize solar energy capture in a variety of conditions.

23.5% Conversion Rate

With an industry-leading 23.5% conversion rate, it's far lighter and approx. 10% smaller than similar portable solar panels on the market. That means a faster, easier charge wherever you are.

Durable & Secure

The ETFE-laminated design make it extremely temperature and corrosion resitant, with a functioning temperature range of -4°F~140°F（-20°C~60°C）. The battery grid is designed on the back of the panel, preventing battery cracks whilst giving longer battery life.

Portable and Easy to Install

Weighing 3 kg, 110 Watt portable solar panels can be super lightweight to carry outside for camping, fishing, gardening, and any occasion you need it. The 110W solar panel charger features a lightweight, bifold design, once unfolded, two kickstands allow for easy positioning on any flat surface to give you instant charge from sunlight

Waterproof for Outdoorsy

Up to IP67 waterproof rated, making it possible for camping in the humid environment, with the product able to withstand both harsh and wet weather - now explore further to any of the world's locations on earth!

Compatible with Most Power Stations

Wide Compatibility.Equipped a Solar Extension Cable to XT60 Cable.Instant and convenient power to your appliances, both indoors and outdoors with magnificent solar power!

Easy to Use and Portable

Weighing just 7.3 pounds and folding down to a compact of 23.5 L x 21.3 W x 1.6 H inches, it's a breeze to carry in your hand.
Whether you are camping, fishing or embarking on a RV trip with your family, this suitcase solar panel should be an ideal choice.

Product Details

Specifications

Peak Power : 110W±5%
Open Circuit Voltage (Voc) : 24.0V
Short Circuit Current (Ise) : 6.0A
Maximum Power Voltage (Vmp) : 20V
Maximum Power Current(Imp) : 5.5A Max
Solar energy conversion rate: 23.5%
Operating Temperature:-20~60°C/-4~140°F
All technical data at standard test condition (STC: E=1000W/m2 TC=25CAM=1.5)
Unfolded Size: 1080x596.x22mm±0.5cm/42.5x23.4x0.86inch±0.2inch
Folded Size: 59.6cx54x4cm±0.5cm/ 23.46 x 21.25 x 1.57 inch±0.2inch
Net Weight : 3.07KG±0.3KG/108.3oz±10oz

Package Contents

110W Solarpanel *1
Solar Extension Cables to XT60 (MC-4 to XT60) *1
instruction manual *1

How It Works

1.Place your solar panel to an area where you can get the most possible sunlightand adjust the angel to sun.
•The solar panel must be exposed to direct sunlight, avoid any possible shelters like buildings and trees.
• The solar panel angled at 30-60 degrees from a flat surface will harvest the solar energy that is most possible.
• If your solar panel must be adhere to other surface, you need to avoid the damp or irregular surface as they might bring a bit distortion after long time sunlight exposure.(we can rescue it after a second long time exposure)
• Please choose the sunny hours in a day(9:00 am to 5:00 pm)and panels operate at peak efficiency when the sun is most direct-typically around mid- day(am 12:00-1:00 pm)

2.Build connection between the solar panel and your Laptops/Solargenerators.
• Solar panels generate electricity when panels meet sunlight, so please protect them with clothes before you plug in a device.
• Plug in the cable to the input of your device first, then the other end of cable go towards the output of solar case.
• Remove the clothes and you will find a charging sign on your laptop, if not, please build the connection again or replace another charging cable.
• If there shows up a charging sign, you can settle your device to a cool place for better heat dissipation and turn off your device to save the loss of energy during its running hours especially for laptops

3.How to chain multiple solar modules together
It is also designed for charging 12V/24V lead-acid batteries, including lithium and other equipment, pls do pair the charging with a solar regulator to protect the batteries system from overcharging.
• You can add more solar panels together with MC-4 Y connectors to get differen output: oltages are additive when are connected directly in series, and the currents are additive when panels are connected directly in parallel.
• Only solar panels with similar electrical output should be connected in the same string to avoid mismatch effects

MC-4 Connectors
1.Keep connectors dry and clean, and ensure that connector caps are hand tight before connecting the panel.
2. Do not attempt making an electrical connection with wet, soiled, or otherwise faulty connectors.
3. To better preserve its service life, please avoid sunlight exposure and water immersion of the connectors, and avoid connectors resting on the ground or roof surface.
4. Faulty connections can result in electrical shock. Please check that all electrical connections at least once every 6 months. Make sure that all locking connectors are fully fastened and locked.

Warm Tips

1. Please do not try to modify the PCB circuit inside the back junction box unless you are a professional technician, or we are not responsible for such a result.
2. The solar panel charger is built with a anti-flow resistant preventer inside, it will not occur the backflow phenomenon.
3. Do not step, stand or jump on the surface of the solar panel. Heavy or sharp objects may scratch the solar panel and cause small cracks, affecting the output power or scratching the human body.
4.lf the solar panel is broken, please stop using it and contact professional maintenance personnel or the manufacturer's after-sales service mailbox. A professional will fix it rather than fix it yourself.
5.The waterproof coefficient of the solar panel is IP67, which is rainproof and can be immersed in water for a short time, but it is forbidden to immerse in water for a long time. Once it is short-circuited due to water immersion, please stop using it and contacting the seller.

User Manual

110W Foldable Solar Panel
SKU:MH-SP-001
DOWNLOAD

Lightweight and super easy to carry

No setup needed—just unfold and plug in. Perfect for non-techies like me!

Power Output is Consistent and Strong

This 110W solar panel charges my Jackery 1000 —faster than my old Renogy panel! The monocrystalline cells are incredibly efficient, even in partial shade.
